Definition: CAD to 3D conversion is the conversion of design data from CAD systems into lightweight 3D models that are optimized for display in real-time applications. Mathematically exact solid and surface models become polygon meshes that run smoothly in web viewers, on tablets, on kiosk terminals and in AR and VR.
The conversion is one step in the 3D pipeline, which describes the full path from design to publication. This entry focuses on the transition itself: what happens to geometry, structure and information when CAD data becomes a visualization model.
In B2B mechanical engineering, CAD to 3D conversion is used for: 3D product presentations in sales, digital exhibits at trade shows, spare parts and service applications, training content, and design reviews with partners who do not have a CAD license.
Advantage: You can use existing design data for marketing, sales and service without modeling it again.
English: CAD to 3D Conversion, CAD Data Preparation, CAD Tessellation
German: CAD-zu-3D-Konvertierung, CAD-Datenaufbereitung, CAD-Datenkonvertierung
How It Works
From exact surfaces to triangles

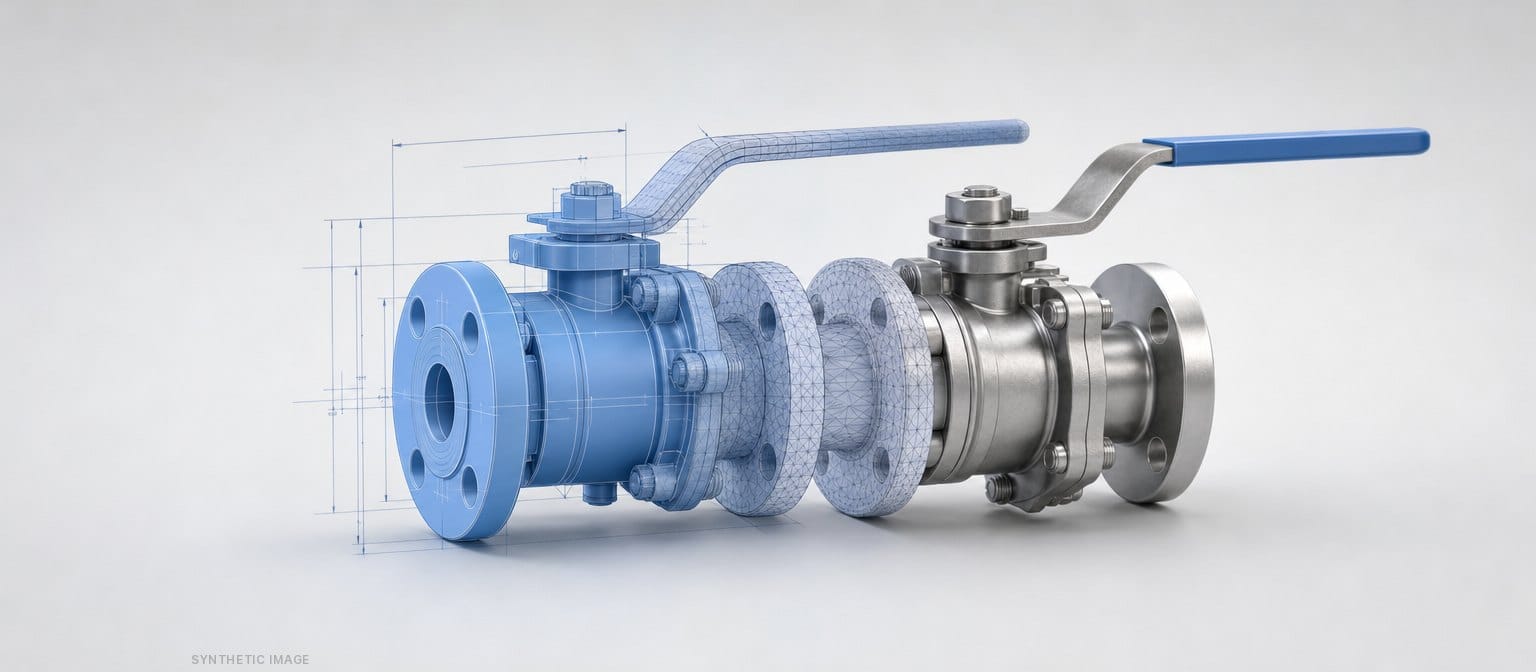

CAD systems usually describe parts as a boundary representation model (B-rep) with NURBS surfaces. In such a model, a bore hole is an exact cylinder. Graphics cards cannot display such surfaces directly in real time. They need triangles. The conversion typically runs in these steps:
- Import: Read native CAD formats or neutral exchange formats with the assembly structure, colors and metadata.
- Tessellation: Split each surface into triangles. Tolerances such as chordal deviation and angular tolerance specify how accurately curves are approximated.
- Cleanup and simplification: Remove internal and unimportant parts, merge parts, reduce polygons.
- Material assignment: Physically based rendering (PBR) materials, such as brushed steel or painted sheet metal, replace the CAD colors.
- Export: Output to real-time formats such as glTF/GLB or USDZ, often in several quality levels.
Tessellation as the main adjustment
A fine tessellation gives round edges, but millions of triangles. A coarse tessellation saves data, but bore holes look angular. Good conversions tessellate based on part size and visibility: large, visible housing surfaces with a fine tessellation, hidden small parts coarsely or not at all.
Structure and metadata
In addition to the geometry, the conversion decides which information stays: assembly hierarchy, part names, part numbers or material data. For exploded views, spare parts catalogs and 3D product configurators, you must keep the structure intentionally. For product images only, you can simplify it a lot.
Formats at a Glance
| Role | Format | Classification |
|---|---|---|
| Input | Native CAD formats (for example CATIA, NX, Creo, SOLIDWORKS, Inventor) | Complete design data including history |
| Input | STEP (ISO 10303, for example AP242) | Neutral exchange format for exact geometry and product data |
| Input | JT (ISO 14306) | Lightweight visualization and exchange format, common in the automotive industry and mechanical engineering |
| Output | glTF 2.0 / GLB (ISO/IEC 12113) | Open standard for real-time 3D on the web, on mobile devices and in XR |
| Output | USDZ | Package format based on OpenUSD, the standard for AR on Apple platforms |
| Output | OBJ | Simple polygon format without hierarchy, as an exchange and fallback format |
Recommendation: glTF is established as the main output format, and USDZ supplements it for Apple devices. You can create both from the same prepared model.
Typical sources of errors during export
- Incorrect units: A model designed in millimeters appears a thousand times too large in AR when the unit is not transferred correctly.
- Lost hierarchy: Exports without the assembly structure give a single mesh, in which you can no longer control parts individually.
- Missing colors: Not every export profile transfers part colors. You must then assign the materials again.
- Flipped normals: Surfaces appear invisible or black from the outside, and you must correct them.
Protection of Know-How
CAD data contains the knowledge of a machine builder: exact dimensions, tolerances, design history and internal mechanics. A visualization model needs almost none of this. The conversion is therefore also a protection step:
- No parametrics: The polygon model contains no design history, sketches or dimensions.
- Remove the internals: Delete gearboxes, drives and control components that are not visible during operation.
- Reduce accuracy: Coarse tessellation and polygon reduction make exact dimensions unusable.
- Filter metadata: Remove supplier information, internal names and manufacturing data.
A residual risk remains: you can derive proportions and outer contours from a polygon model too (see reverse engineering). For confidential projects, access control and other data security measures are therefore added.
B2B Applications
Sales: presentations from design data
A manufacturer of packaging machines converts its product line into lightweight 3D models. The field sales team shows them on the tablet, in the browser at the customer site or as an AR model in the production hall. New variants come from the updated CAD data, without manual remodeling.
Trade show: digital exhibits
Systems that are too large for the booth are converted from the CAD data and shown on large screens, touch terminals or in the headset. Section views and animations show functions that would be hidden on the real machine.
Service: spare parts and maintenance
For service applications, the assembly structure with part numbers stays. Technicians click a part and see its name and order number. Exploded views show the assembly sequence.
Training: operator training before delivery
The CAD data gives a training model on which operators practice setup and maintenance procedures before the machine is delivered. In combination with operating data, the model becomes the basis for a digital twin.
Design review: review without a CAD license
Sales, production and customers review a design version in the browser or in VR, without installing CAD software. The converted version contains only what is necessary for the decision.
Frequently Asked Questions (FAQ)
What is the difference between CAD to 3D conversion and the 3D pipeline?
The 3D pipeline describes the full process from design through texturing and scene setup to publication on all channels. CAD to 3D conversion is the step in it in which exact CAD geometry becomes polygons and in which you decide which structure and information stay.
Which CAD format is the best starting point?
Native formats contain the most information, but they require applicable import tools. STEP is the most common neutral path and keeps exact geometry and assemblies. Many companies already have JT for visualization in the PLM environment. What matters is that the assembly structure and colors stay during the export.
How much can you reduce the data?
That depends on the source model, the target device and the required detail. Often, the largest effect does not come from polygon reduction, but from removing hidden internal parts and small standard parts. Always test a guide value for the achievable size on a representative model.
Can you automate the conversion?
Yes, to a large extent. You can automate tessellation, removal of internal parts, reduction and export with rules. Manual work remains for materials, hero views and special cases. Automation is especially worthwhile for product catalogs with many variants.
Are converted models safe from copying?
They reveal much less than CAD data because parametrics, tolerances and internals are missing. They do not give complete protection. For sensitive content, also use access control, streaming instead of download, and contractual agreements.
Industry Standards and Technologies
- STEP AP242 – ISO 10303-242, exchange standard for model-based 3D design data
- JT project groups at prostep ivip – further development and use of JT (ISO 14306)
- glTF 2.0 – Khronos standard for real-time 3D, published as ISO/IEC 12113
- USDZ specification – package format based on OpenUSD
- Alliance for OpenUSD – standardization of OpenUSD, Core Specification 1.0
- Draco – open-source compression for polygon meshes, usable in glTF
